Robot Product

T7-AL Series Under-Rack Lift AMR

A compact under-rack mobile robot designed for automated material transport in warehouses and production facilities. Integrating autonomous navigation, electric lifting, intelligent recognition, and 360° safety protection, the T7-AL Series moves racks and material carts efficiently through low-clearance and narrow-aisle environments.

Powered by KC

Built on KC’s proven control and navigation technologies for reliable, stable operation.

Capable of OEM

Flexible OEM options to meet different payload, dimension, and application requirements.

Compact and flexible

A low-profile design, tight turning radius, and up to 1,500 kg payload make it easy to maneuver in confined spaces.

Get Full Spec Sheet

Request a Demo

Technical Parameters

Compare models, configurations, and specifications to find the right fit for your application.

Category	Parameter	T7-400-AL	T7-600-AL	T7-1000-AL	T7-1500-AL
Basic Parameters	Rated Load (kg)	400	600	1,000	1,500
	Dimensions (L × W × H) (mm)	740 × 520 × 250	900 × 650 × 250	1,085 × 780 × 250	1,085 × 780 × 250
	Turning Diameter (mm)	810	995	1,190	1,190
	Ground Clearance (mm)	20	20	20	20
	Lifting Platform Size (mm)	710 × 520	910 × 564	1,040 × 710	1,040 × 710
	Lifting Height (mm)	60	60	60	60
	Lifting Method	Electric lifting	Electric lifting	Electric lifting	Electric lifting
	Net Weight, Including Battery (kg)	100	120	185	195
	Navigation Method	Laser SLAM / QR code	Laser SLAM / QR code	Laser SLAM / QR code	Laser SLAM / QR code
	Rack-Following Function	Supported	Supported	Supported	Supported
	LCD Display	Optional	Optional	Optional	Optional
Safety Protection	LiDAR Protection Coverage	360°	360°	360°	360°
	Anti-Collision Strip	√	√	√	√
	Audible and Visual Alarm	√	√	√	√
	Visual Obstacle Avoidance	Optional	Optional	Optional	Optional
Motion Performance	Maximum Travel Speed (m/s)	2	2	2	2
	Rated Acceleration, No Load (m/s²)	0.7	0.7	0.7	0.7
	Navigation Angle Accuracy (°)	±1	±1	±1	±1
	Positioning Accuracy (mm)	±10	±10	±10	±10
Battery Performance	Battery Type	LiFePO₄	LiFePO₄	LiFePO₄	LiFePO₄
	Battery Life (h)	8	8	8	8
	Charging Time, 10%–80% (h)	2	2	2	2

Complete Your Automation Suite

Explore the controllers, functional modules, and software that power this robot—or use them to build your own.

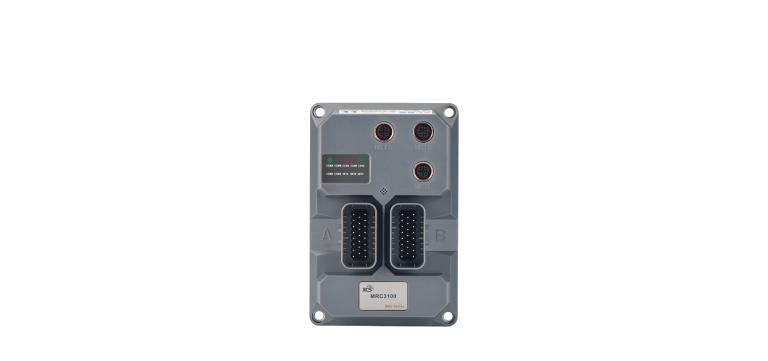

MRC3100 — Differential Mobile Robot Controller

Compact enough to embed in any vehicle structure, without compromising performance.

View Detail

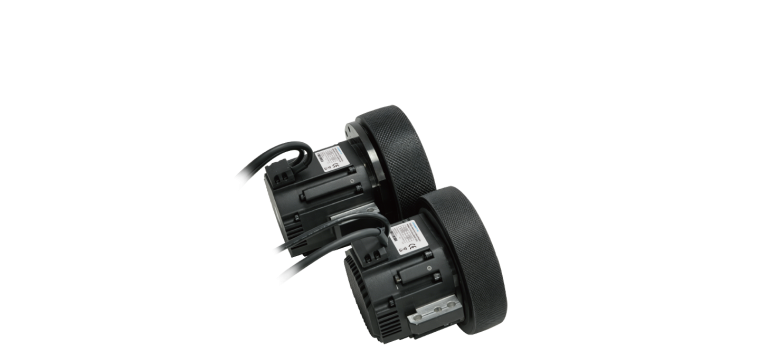

MRW Series — Servo Wheel Drives

All-in-one wheel module — motor, gearbox, encoder, driver, brake, and wheel combined — cutting chassis space while delivering high-precision, high-torque, smooth-running drive.

View Detail

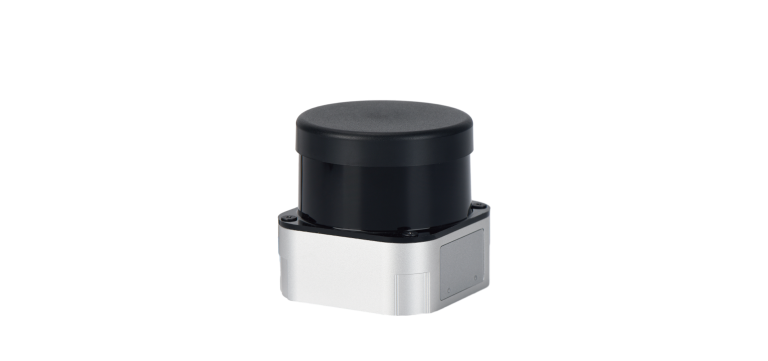

MRL1300-S001 — 2D LiDAR Scanner

360° scanning at up to 30Hz, letting AMRs run up to 4m/s while maintaining 0.033° resolution for reliable obstacle detection and precise positioning.

View Detail

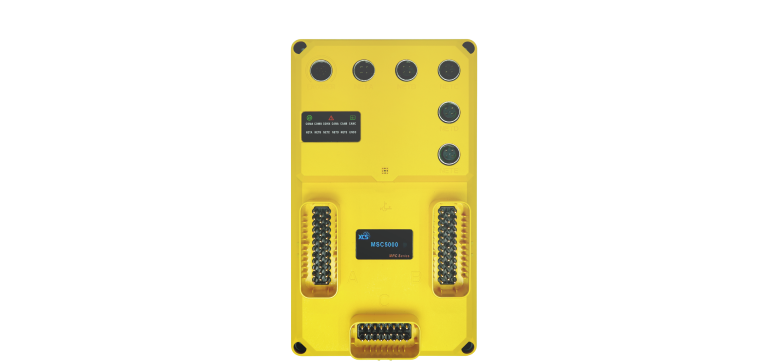

MSC5000 — Functional Safety Mobile Robot Controller

SIL3 and PLe certified, delivering safe navigation with integrated e-stop, area detection, and speed monitoring in one unit.

View Detail

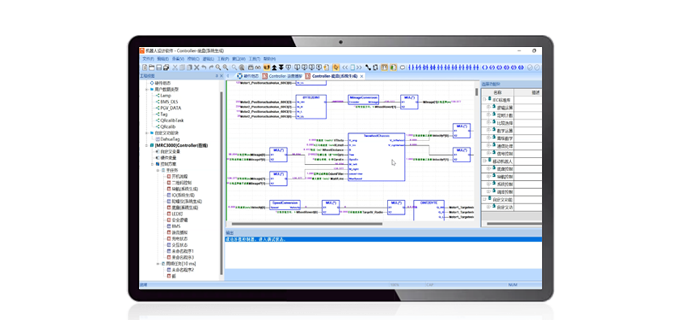

xRobotStudio — One-Stop Field Deployment Software

Map, draw paths and configure tasks in a single interface, turning a bare chassis into a production-ready robot without writing code on site.

View Detail

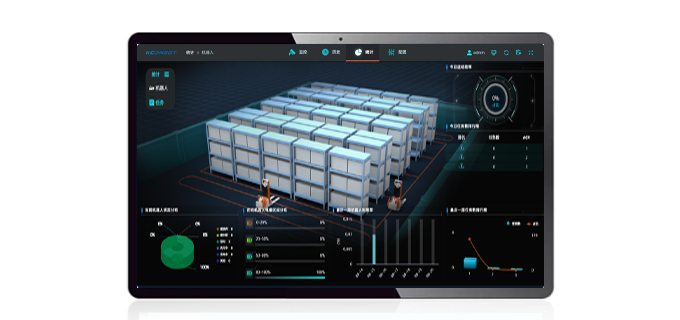

XRobotFleet — Unified Fleet Monitoring & Dispatching Platform

Real-time visibility into every robot's location and task status, paired with intelligent task allocation, traffic management and dispatch-logic simulation across mixed fleets — monitor, dispatch and validate strategy changes in one system before they go live.

View Detail
